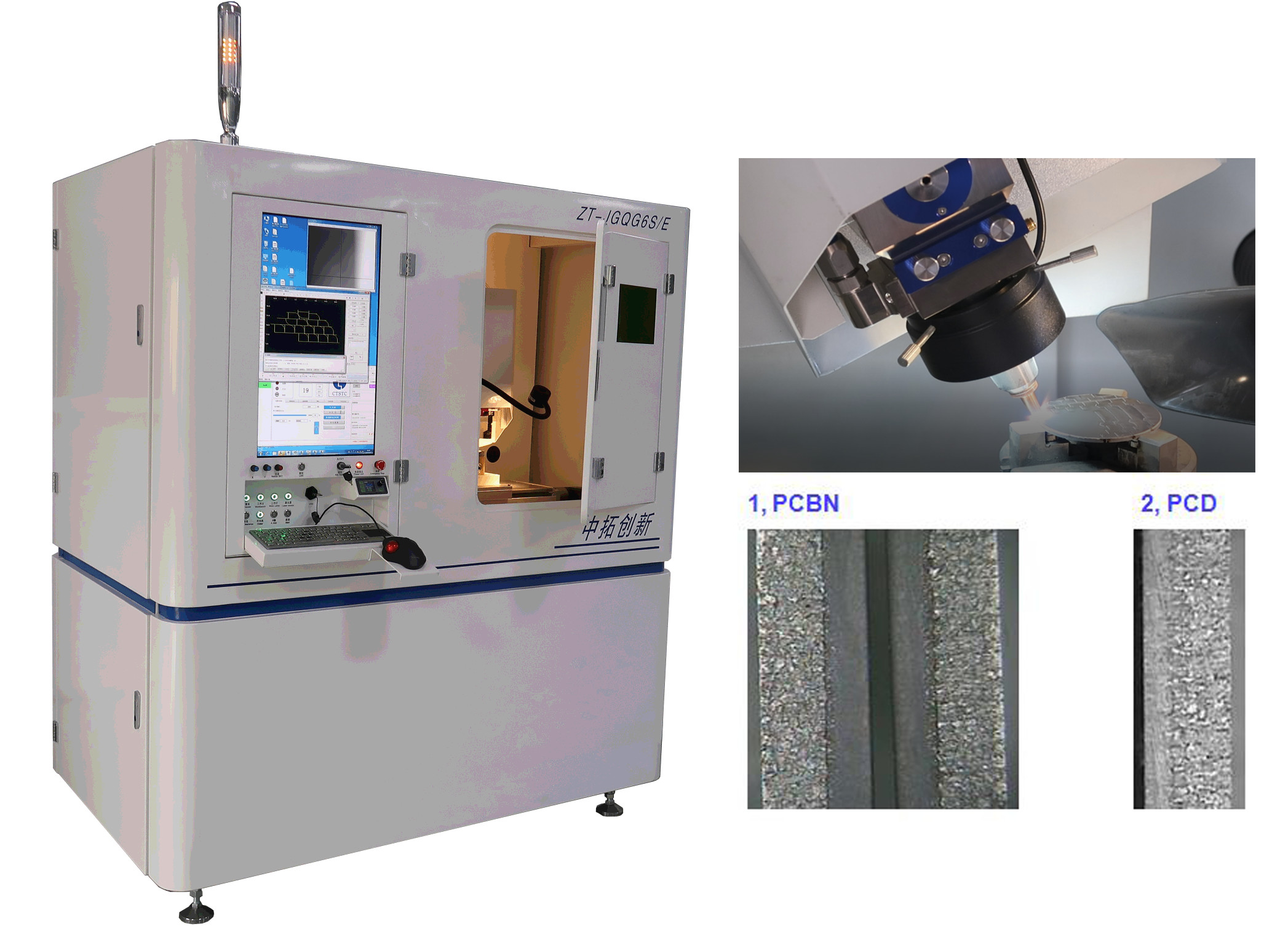

6000W PCBN Diamond Cutting Equipment High Wear Resistance
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Laser Cutting | ||
|---|---|---|---|
| Highlight | 6000W diamond cutting equipment,PCBN Diamond Cutting Equipment |
||
Product Description
PCBN Inserts Cutting Laser Cutting Machine CHNTOP
Quick Details
1. The machine bed with high rigidity and high wear resistance ,adopts high-temperature annealing process to ensure that the bed will not be deformed for a long time;
3. Adopt precision gear rack transmission mode to ensure highly dynamic performance;
4. Multiple intelligent sensor modules greatly improve personnel safety and effect of equipment protection
5. Integrated design is better for delivery, easy to operate, greatly shorten the testing time
6. Equip large-size, multi-functional display to make operation more convenient
Description:
Based on marketing and customized requirements, the economic fiber laser cutting machine launched. It replace by expensive fiber laser and past YAG laser. And widely used for PCD/ PCBN/ CVD/ Sapphire/ PDC/ND/MD/ Carbide/ Ceramic material high precision cutting.
The machine is used for cutting a variety of metal,the cutting effect is excellent and stable.
Specifications:
| Technology Parameters | |
| Laser Source | Fiber |
| Control system | X/Y/Z high precision worktable with rotary A axis |
| Software system | Based on Windows R&D control system |
| Monitor system | CCD same axis monitor |
| Laser head | Special laser head |
| Focus system | High resolution laser sensor |
| Body | Marble Body base |
| Electric Power | 380v-3phase-5wires 50HZ |
| Power | 6KW |
| Laser Power | 3000W |
| Worktable | 220*220*100mm(x*y*z) |
| A Axis rotation angle | ±30°(can cut relief angle) |
| Repeating Position Accuracy | ≦0.005mm(stepping system) |
| ≦0.003mm(servo system) | |
| Load | ≦15KG |
| Max speed | 600mm/min |
| Kerf Width | ≦0.10mm |
Applications:
This machine is mainly suitable for cutting ultra-hard materials(PCD/ PCBN/ hard alloy),also applicable to materials that cannot be processed by wire cutting.
