Grinding Wheel Inclination -13°- 24° The Key to Precision Grinding with Hard Materials Grinder

Product Description:

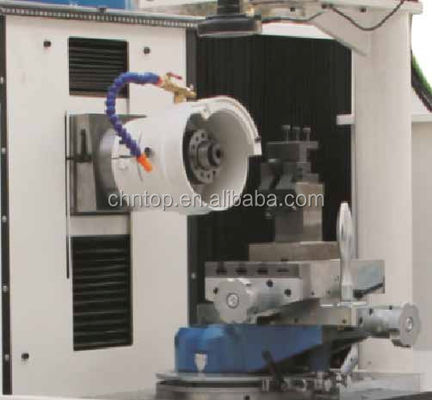

The PCD Grinding Machine is a cutting-edge tool designed for precision grinding of hard materials such as PCD/PCBN Tools. With a net weight of 1450kgs, this machine is robust and stable, ensuring high-quality performance in grinding applications.

Featuring an advanced Image System Resolution of 1280dpi*960dpi, the PCD Grinding Machine provides exceptional clarity and accuracy in the grinding process. The high-resolution imaging system enables operators to achieve precise results with ease, enhancing overall efficiency and productivity.

The machine's Pixel Size of 3.75um*3.75um further contributes to its superior performance, allowing for detailed and intricate grinding tasks. This fine pixel size ensures that even the most intricate patterns and shapes can be accurately replicated on the workpiece, resulting in impeccable finished products.

One of the standout features of the PCD Grinding Machine is its Grinding Wheel Inclination range of -13° to +24°. This wide inclination range allows for versatile grinding angles, enabling operators to achieve various profile shapes and cutting geometries with precision and consistency.

Moreover, the machine offers an impressive Image Magnification of 45-250 times (digital zoom), providing operators with a clear and detailed view of the grinding process. The high magnification capability enhances visibility and accuracy, allowing for meticulous control over the grinding operation.

In summary, the PCD Grinding Machine is a state-of-the-art equipment designed for professionals seeking uncompromising precision and performance in grinding hard materials. Its advanced features, including high-resolution imaging, fine pixel size, versatile grinding wheel inclination, and powerful image magnification, make it an indispensable tool for PCD grinder, Hard materials grinder, and PCD/PCBN Tools grinder applications.

Applications:

CTSTC PCD Grinding Machine is a high-quality tool designed for various product application occasions and scenarios. With a brand name of CTSTC and manufactured in China, this grinding machine comes with a CE certification, ensuring its reliability and safety in operation.

Whether you are working on hard materials or require precision grinding, the CTSTC PCD Grinding Machine is the perfect solution. Its spindle power of 2.2kw provides efficient grinding capabilities, making it suitable for a wide range of materials.

The minimum order quantity for this PCD grinding machine is 1, and it comes packaged in a sturdy plywood box to ensure safe delivery. With a delivery time of 45-60 days, customers can expect timely arrival of their orders. Payment terms accepted include TT, LC, and Western Union, providing flexibility for buyers.

Measuring 1200*1168*1530mm (L*H*W), this grinding machine is compact yet powerful. It offers a grinding pressure of 0-450N, which is adjustable based on the material being worked on. The grinding wheel oscillation distance can be adjusted from 0-40mm, allowing for precise control during operation. Additionally, the grinding wheel height adjustment of 140mm enables users to customize the machine according to their specific needs.

Whether you are in the manufacturing industry, tool and die making, or any other field that requires a hard materials grinder, the CTSTC PCD Grinding Machine is a reliable and efficient choice. Its versatility and durability make it suitable for various grinding applications, ensuring high-quality results every time.

Customization:

Product Customization Services for the PCD Grinding Machine

Brand Name: CTSTC

Place of Origin: CHINA

Certification: CE

Minimum Order Quantity: 1

Packaging Details: plywood box

Delivery Time: 45-60 days

Payment Terms: TT/LC/Western Union

Name: PCD/PCBN Grinding Machine

Image Magnification: 45-250 Times (digital Zoom)

Cross Table Swiveling Angle: 270°

Grinding Wheel Traveling Range: 170mm

Net Weight: 1450kgs

Support and Services:

The Product Technical Support and Services for the PCD Grinding Machine product include:

- Installation guidance and setup assistance

- Training on machine operation and maintenance

- Troubleshooting support for machine issues

- Regular maintenance services and check-ups

- Spare parts availability and replacement services

- Software updates and technical enhancements
