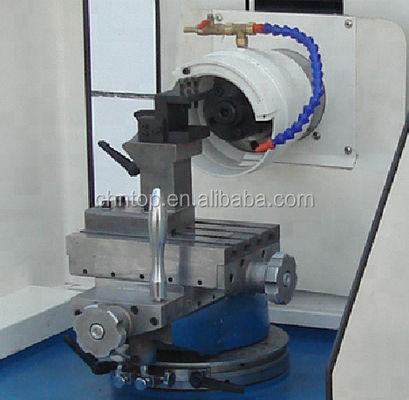

140mm Grinding Wheel Height Adjustment PCD Grinding Machine 170mm Grinding Wheel Traveling Range and 210*160mm Cross Table

Product Description:

The PCD Grinding Machine is a high-precision equipment designed specifically for grinding PCD/PCBN materials, providing exceptional accuracy and efficiency in various industrial applications. With advanced features and superior performance, this machine is ideal for precision grinding tasks, delivering reliable results consistently.

Featuring an impressive Optical Tube Distance of 300mm, this PCD/PCBN materials grinder ensures precise control and optimal grinding conditions for achieving desired outcomes. The machine's Readout of Linear Gratings at 0.001mm allows for fine adjustments and enhanced accuracy during operation, enabling users to achieve the desired level of precision in their grinding tasks.

Equipped with an Image System Resolution of 1280dpi*960dpi, the PCD Grinding Machine offers exceptional clarity and detail in imaging, ensuring accurate visualization and precise control over the grinding process. This high-resolution imaging system enhances the overall efficiency and quality of the grinding operation, making it a valuable tool for various industrial applications.

The Grinding Wheel Size of 150*40*40mm (D*H*T) provides the machine with the necessary tools for effective material removal and precise grinding of PCD/PCBN materials. This optimal wheel size ensures efficient performance and consistent results, meeting the requirements of precision grinding tasks with ease.

With a Net Weight of 1450kgs, the PCD Grinding Machine is sturdily built and capable of handling heavy-duty grinding operations with stability and reliability. Its robust construction and durable design make it suitable for continuous use in demanding industrial environments, delivering consistent performance and long-lasting durability.

Overall, the PCD Grinding Machine is a versatile and reliable tool for precision grinding tasks involving PCD/PCBN materials. With its advanced features, high precision capabilities, and durable construction, this PCD grinder is an essential asset for industries requiring accurate and efficient grinding solutions.

Applications:

The CTSTC PCD Grinding Machine is a high-precision tool designed for grinding hard materials with efficiency and accuracy. Its advanced features make it suitable for a wide range of applications in various industries.

Product Application Occasions and Scenarios:

- Manufacturing of precision components: The PCD grinder is ideal for grinding hard materials such as PCD, PCBN, and carbide tools used in the production of precision components for industries like aerospace, automotive, and medical equipment.

- Tool and die making: This grinding machine is perfect for tool and die makers who require precise and intricate grinding of hardened materials to create molds, dies, and cutting tools for various applications.

- Sharpening and regrinding services: The CTSTC PCD Grinding Machine is well-suited for sharpening and regrinding services for tools and cutters used in woodworking, metalworking, and other industries that demand high precision and quality finish.

- Research and development laboratories: The PCD grinder is also suitable for research and development laboratories working on advanced materials and requiring a reliable and efficient grinding solution for their projects.

- Custom tool manufacturing: Companies specializing in custom tool manufacturing can benefit from the high-resolution image system and precise readout of linear gratings provided by this machine, ensuring the accurate and consistent production of custom tools according to client specifications.

With its CE certification and reliable performance, the CTSTC PCD Grinding Machine is a versatile tool that can cater to the specific needs of different industries and applications. The machine's compact dimensions, sturdy construction, and net weight of 1450kgs make it a durable and long-lasting investment for businesses.

Order your PCD grinding machine today with a minimum order quantity of 1 and get it delivered in a sturdy plywood box within 45-60 days. Payment terms accepted include TT, LC, and Western Union. Experience the precision and efficiency of grinding hard materials with the CTSTC PCD grinder!

Customization:

At CTSTC, we offer Product Customization Services for our top-of-the-line PCD Grinding Machine. Our machine is designed and manufactured in CHINA, with a CE certification ensuring high-quality standards.

With a minimum order quantity of 1, our PCD grinding machine comes packaged in a sturdy plywood box for safe transportation. The delivery time for customization is estimated at 45-60 days, and we accept various payment terms including TT, LC, and Western Union.

Key Features:

• Image System Resolution: 1280dpi*960dpi
• Cross Table Swiveling Angle: 270°
• Readout of Linear Gratings: 0.001mm
• Grinding Pressure: 0-450N (adjustable)
• Dimension: 1200*1168*1530mm (L*H*W)

Enhance your PCD grinding experience with our customizable PCD grinder. Contact us today to discuss your specific requirements and get a tailored solution that meets your needs perfectly.

Support and Services:

The Product Technical Support and Services for the PCD Grinding Machine include:

- Expert advice on machine setup and operation

- Troubleshooting assistance for any technical issues

- Regular maintenance and servicing options

- Training programs for operators on machine usage and best practices

- Access to online resources and documentation for reference
