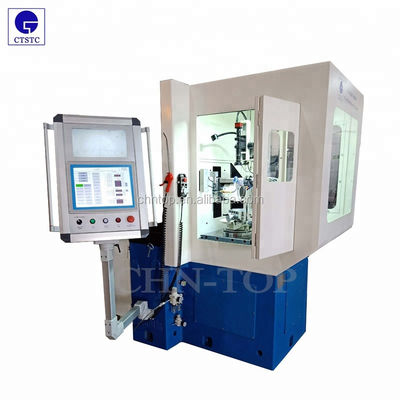

Adjustable 0-45/min Oscillation Frequency PCD Grinding Machine with 3.75um*3.75um Pixel Size and 210*160mm Cross Table Size

Product Description:

A PCD grinding machine is a precision tool designed for grinding PCD/PCBN materials with utmost efficiency and accuracy. One such exceptional product is the PCD Grinding Machine, boasting a net weight of 1450kgs, making it stable and sturdy during operation. This machine features a spindle speed ranging from 0 to 42000RPM, allowing for adjustable speed settings based on the specific grinding requirements.

The spindle power of the PCD Grinding Machine is 2.2kw, ensuring a powerful and consistent performance during grinding operations. To further enhance its functionality, this machine is equipped with a cross table measuring 210*160mm, complete with 4T grooves for securing workpieces effectively. This feature enables precise and controlled movements of the workpiece during the grinding process, contributing to superior grinding results.

Moreover, the grinding wheel inclination of the PCD Grinding Machine ranges from -13° to +24°, providing flexibility in grinding angles to accommodate various PCD/PCBN materials grinder. This versatility allows operators to achieve different grinding profiles and finishes with ease, enhancing the overall efficiency and effectiveness of the grinding process.

Features:

• Product Name: PCD Grinding Machine
• Optical Tube Distance: 300mm
• Grinding Wheel Size: 150*40*40mm(D*H*T)
• Grinding Wheel Oscillation Distance: 0-40mm(adjustable)
• Spindle Speed: 0-42000RPM(adjustable)
• Name: PCD/PCBN Grinding Machine

Applications:

CTSTC PCD Grinding Machine is a high-precision tool specifically designed for grinding PCD/PCBN materials, making it an ideal choice for industries working with hard materials that require precision grinding. With a spindle power of 2.2kw, this machine provides efficient and accurate grinding results.

The product, originating from CHINA, is CE certified, ensuring high quality and safety standards. It comes with a minimum order quantity of 1 and is packaged in a sturdy plywood box to ensure safe delivery. The dimensions of the machine are 1200*1168*1530mm (L*H*W), making it suitable for various workshop sizes.

One of the standout features of the CTSTC PCD Grinding Machine is its grinding wheel oscillation distance that is adjustable from 0-40mm, allowing for versatile grinding options. The cross table swiveling angle of 270° and the grinding wheel inclination range of -13° to +24° further enhance the machine's flexibility in handling different grinding tasks.

Whether you are in the automotive, aerospace, or tool manufacturing industry, this PCD grinding machine is perfect for applications that require precision grinding of hard materials. Its delivery time of 45-60 days and flexible payment terms of TT/LC/Western Union make it convenient for businesses looking to enhance their grinding capabilities.

Customization:

Product Customization Services for the CTSTC PCD Grinding Machine :

Brand Name: CTSTC

Place of Origin: CHINA

Certification: CE

Minimum Order Quantity: 1

Packaging Details: plywood box

Delivery Time: 45-60 days

Payment Terms: TT/LC/Western Union

Grinding Wheel Inclination: -13°~+24°

Grinding Wheel Height Adjustment: 140mm

Size of Cross Table: 210*160mm With 4T Grooves

Pixel Size: 3.75um*3.75um

Optical Tube Distance: 300mm

Customize your Hard materials grinder , PCD/PCBN Tools grinder with the CTSTC PCD Grinding Machine to meet your specific requirements.

Support and Services:

The Product Technical Support and Services for the PCD Grinding Machine include troubleshooting assistance, maintenance guidance, and repair services. Our team of experts is available to answer any questions you may have regarding the operation and performance of the machine. Additionally, we offer training programs to help you optimize the use of the PCD Grinding Machine and maximize its efficiency.
