Linear Gratings Hard Materials Grinder with -13°- 24° Grinding Wheel Inclination and 0.001mm Readout

Product Description:

The PCD Grinding Machine is a versatile and powerful tool designed for precision grinding of hard materials. With a readout of linear gratings at 0.001mm, this machine ensures accurate and consistent results for your grinding needs.

Equipped with a spindle power of 2.2kw, the PCD Grinding Machine provides sufficient power to tackle tough materials with ease. The spindle speed is adjustable, ranging from 0 to 42000RPM, allowing for precise control and customization based on your specific requirements.

The image system resolution of the PCD Grinding Machine is exceptional, with a resolution of 1280dpi*960dpi. This high resolution ensures detailed and clear imaging, enabling you to monitor and adjust the grinding process effectively.

One of the key features of the PCD Grinding Machine is its grinding pressure, which is adjustable from 0 to 450N. This flexibility in grinding pressure allows you to achieve the desired finish and precision in your grinding applications.

Whether you are working with PCD, PCBN tools, or other hard materials, the PCD Grinding Machine is a reliable and efficient solution for your grinding needs. Its robust design and advanced features make it an ideal choice for precision grinding tasks.

Invest in the PCD Grinding Machine to experience superior performance, accuracy, and versatility in your grinding operations. With its advanced capabilities and adjustable settings, this machine is sure to meet and exceed your expectations for a hard materials grinder.

Features:

• Product Name: PCD Grinding Machine
• Optical Tube Distance: 300mm
• Grinding Wheel Inclination: -13° to +24°
• Dimension: 1200*1168*1530mm (L*H*W)

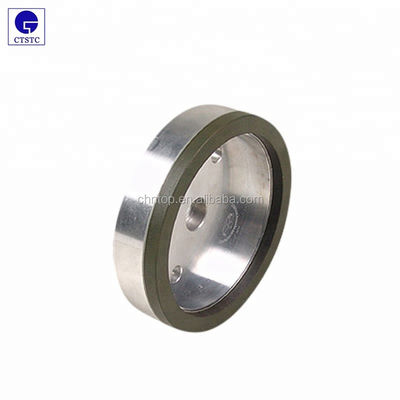

• Grinding Wheel Size: 150*40*40mm (D*H*T)
• Spindle Power: 2.2kw

Applications:

The CTSTC PCD grinding machine is a high-quality product originating from China, designed for precision grinding of PCD/PCBN materials. With its CE certification, this machine is suitable for various application occasions and scenarios.

Whether you are in the automotive, aerospace, or woodworking industry, this PCD grinder is ideal for sharpening and regrinding PCD tools used in cutting, milling, and drilling operations. The adjustable spindle speed ranging from 0 to 42000 RPM allows for versatile use across different materials and tool sizes.

The optical tube distance of 300mm ensures accurate positioning and grinding of PCD materials, while the grinding wheel height adjustment of 140mm and traveling range of 170mm enable precise control over the grinding process. Additionally, the adjustable grinding pressure of 0 to 450N guarantees optimal results for varying material hardness.

When it comes to product logistics, the minimum order quantity of 1 unit makes it convenient for both small-scale workshops and large manufacturing facilities to acquire this PCD grinding machine. The packaging details in a sturdy plywood box ensure safe delivery, with a lead time of 45-60 days for order fulfillment.

For payment flexibility, CTSTC offers payment terms including TT, LC, and Western Union, making it convenient for customers worldwide to purchase this high-performance PCD/PCBN materials grinder. Whether you need to resharpen PCD cutting tools or manufacture new PCD components, this machine is a reliable choice for achieving precision and efficiency in your grinding operations.

Customization:

Customize your PCD Grinding Machine with our Product Customization Services:

Brand Name: CTSTC

Place of Origin: CHINA

Certification: CE

Minimum Order Quantity: 1

Packaging Details: plywood box

Delivery Time: 45-60 days

Payment Terms: TT/LC/Western Union

Grinding Wheel Size: 150*40*40mm(D*H*T)

Grinding Wheel Oscillation Frequency: 0-45/min(adjustable)

Grinding Wheel Oscillation Distance: 0-40mm(adjustable)

Spindle Power: 2.2kw

Readout of Linear Gratings: 0.001mm

Support and Services:

The Product Technical Support and Services for the PCD Grinding Machine include:

- Installation guidance

- Training on machine operation and maintenance

- Troubleshooting assistance

- Spare parts ordering and replacement

- Regular maintenance and servicing options
