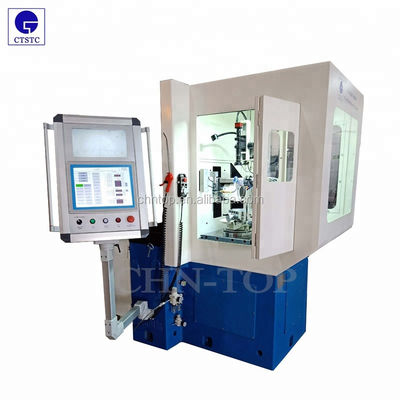

PCD/PCBN Materials Grinder 170mm Wheel Travel and 300mm Optical Tube Distance for Easy Tip Radius Grinding

Product Description:

The PCD Grinding Machine is a high-precision tool designed for grinding hard materials such as PCD and PCBN. With an image magnification of 45-250 times through digital zoom, this machine ensures precise and accurate grinding results.

Featuring a cross table size of 210*160mm with 4T grooves, the PCD Grinding Machine provides a stable and reliable platform for grinding operations. The grinding wheel oscillation frequency is adjustable from 0 to 45/min, allowing for customization based on specific grinding requirements.

With a pixel size of 3.75um*3.75um, this machine offers exceptional clarity and detail during the grinding process. The readout of linear gratings is precise at 0.001mm, ensuring consistent and accurate measurements.

Whether you are working with PCD, PCBN, or other hard materials, the PCD Grinding Machine is a versatile and efficient tool that delivers exceptional results. Its advanced features and adjustable settings make it suitable for a wide range of grinding applications.

Invest in the PCD Grinding Machine for high-quality grinding performance and superior precision. Perfect for various industries requiring precision grinding of hard materials, this machine is a reliable and essential tool in any workshop or manufacturing facility.

Features:

• Product Name: PCD Grinding Machine
• Grinding Pressure: 0-450N (adjustable)
• Spindle Speed: 0-42000RPM (adjustable)
• Optical Tube Distance: 300mm
• Spindle Power: 2.2kw
• Name: PCD/PCBN Grinding Machine

Applications:

CTSTC PCD Grinding Machine is a high-quality grinding equipment designed specifically for processing PCD/PCBN materials, making it an ideal choice for various applications and scenarios.

With its origin in China, this grinding machine is manufactured with precision and excellence, meeting the CE certification standards. Its minimum order quantity is 1 unit, and it is packaged securely in a plywood box for safe transportation.

The delivery time for the PCD Grinding Machine is estimated to be between 45-60 days, ensuring prompt availability for customers. Flexible payment terms including TT, LC, and Western Union are accepted, providing convenience for procurement.

Equipped with an optical tube distance of 300mm and a cross table size of 210*160mm with 4T grooves, this grinder offers versatility and efficiency in grinding PCD/PCBN materials. Weighing 1450kgs, it is sturdy and stable during operation.

The dimensions of the PCD Grinding Machine are 1200*1168*1530mm (L*H*W), providing ample space for grinding operations. The spindle power of 2.2kw ensures high performance and precision in grinding hard materials with ease.

PCD/PCBN materials grinder from CTSTC is suitable for a wide range of product application occasions and scenarios. Whether it's in tool manufacturing, automotive industry, or aerospace sector, this grinder delivers exceptional results in processing hard materials efficiently.

Customization:

Product Customization Services for the PCD Grinding Machine:

Brand Name: CTSTC

Place of Origin: CHINA

Certification: CE

Minimum Order Quantity: 1

Packaging Details: plywood box

Delivery Time: 45-60 days

Payment Terms: TT/LC/Western Union

Spindle Power: 2.2kw

Dimension: 1200*1168*1530mm(L*H*W)

Optical Tube Distance: 300mm

Image Magnification: 45-250 Times (digital Zoom)

Spindle Speed: 0-42000RPM (adjustable)

Support and Services:

The Product Technical Support and Services for the PCD Grinding Machine include:

- Assistance with machine installation and setup

- Training for operators on how to use the machine efficiently

- Troubleshooting and diagnosis of technical issues

- Regular maintenance and servicing to ensure optimal performance

- Provision of spare parts and components

- Upgrades and updates to improve machine functionality
