Digital Zoom PCD Grinding Machine with 0.001mm Linear Grating Readout and 300mm Optical Tube Distance

Product Description:

The PCD Grinding Machine is a high-precision equipment designed for grinding PCD/PCBN materials, making it an essential tool for manufacturers in various industries. This advanced machine offers exceptional performance and efficiency, making it a top choice for those seeking superior grinding solutions.

Key Features:

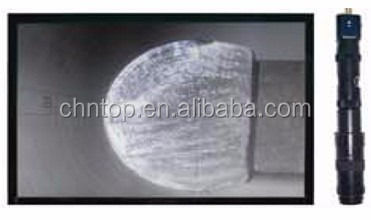

• Image Magnification: 45-250 Times (digital Zoom) - The PCD grinding machine provides a magnification range of 45 to 250 times through digital zoom, allowing operators to closely monitor the grinding process with precision.
• Grinding Wheel Size: 150*40*40mm (D*H*T) - Equipped with a grinding wheel measuring 150mm in diameter, 40mm in height, and 40mm in thickness, this machine ensures effective and consistent grinding results.
• Grinding Wheel Oscillation Frequency: 0-45/min (adjustable) - The oscillation frequency of the grinding wheel can be adjusted from 0 to 45 times per minute, enabling users to customize the grinding process according to their specific requirements.
• Grinding Wheel Oscillation Distance: 0-40mm (adjustable) - With an adjustable oscillation distance of up to 40mm, operators have the flexibility to control the grinding wheel's movement for optimal performance.
• Net Weight: 1450kgs - Despite its robust construction and advanced features, the PCD grinding machine has a net weight of 1450kgs, making it relatively easy to transport and install in different production environments.

Designed for precision and efficiency, the PCD Grinding Machine is specifically engineered to meet the demands of grinding PCD/PCBN materials with exceptional accuracy and consistency. Its versatility and adjustable settings make it suitable for a wide range of PCD/PCBN tools grinding applications.

Whether you are working in the automotive, aerospace, or tooling industry, the PCD Grinding Machine offers a reliable solution for enhancing the performance and longevity of your PCD/PCBN tools. With its user-friendly controls and advanced capabilities, this machine streamlines the grinding process and delivers superior results with every use.

Invest in the PCD Grinding Machine today and experience the benefits of a high-quality, precision tool grinder that is engineered to optimize your production processes and elevate the quality of your PCD/PCBN tooling products.

Features:

• Product Name: PCD Grinding Machine
• Grinding Wheel Height Adjustment: 140mm
• Net Weight: 1450kgs
• Image Magnification: 45-250 Times (digital Zoom)
• Dimension: 1200*1168*1530mm (L*H*W)
• Grinding Wheel Size: 150*40*40mm (D*H*T)

Applications:

When it comes to precision tool grinding, the CTSTC PCD grinding machine is a top choice for various application occasions and scenarios. Originating from China, this high-quality machine boasts a CE certification, ensuring its compliance with international standards.

With a minimum order quantity of just 1 unit and secure packaging details in a sturdy plywood box, the CTSTC PCD grinding machine offers flexibility and reliability to customers worldwide. The delivery time of 45-60 days allows for efficient procurement planning, while the flexible payment terms of TT, LC, and Western Union cater to diverse financial preferences.

Equipped with advanced features such as a tip radius of 0-70mm, adjustable grinding wheel oscillation frequency of 0-45/min, an optical tube distance of 300mm, and a powerful 2.2kw spindle, this PCD grinder is suitable for a wide range of grinding tasks. The high-resolution image system with 1280dpi*960dpi ensures precise and accurate results with every use.

The CTSTC PCD grinding machine excels in grinding PCD/PCBN tools with precision and efficiency, making it ideal for applications in various industries. Whether it's sharpening cutting tools, regrinding inserts, or manufacturing precision components, this versatile grinder delivers exceptional performance.

From tool and die shops to aerospace manufacturers, the CTSTC PCD grinding machine is a valuable asset for enhancing productivity and achieving superior grinding results. Its robust design, user-friendly interface, and reliable performance make it a preferred choice for demanding grinding tasks.

Customization:

Product Customization Services for the PCD Grinding Machine :

Brand Name: CTSTC

Place of Origin: CHINA

Certification: CE

Minimum Order Quantity: 1

Packaging Details: plywood box

Delivery Time: 45-60 days

Payment Terms: TT/LC/Western Union

Name: PCD/PCBN Grinding Machine

Grinding Wheel Traveling Range: 170mm

Grinding Wheel Oscillation Distance: 0-40mm (adjustable)

Spindle Power: 2.2kw

Cross Table Swiveling Angle: 270°

Customize your PCD/PCBN materials grinder with our PCD grinding machine to meet your specific requirements for PCD/PCBN Tools grinding.

Support and Services:

The Product Technical Support and Services for the PCD Grinding Machine include:

- On-site installation and training

- Troubleshooting assistance

- Regular maintenance services

- Access to online resources and manuals

- Remote technical support

- Spare parts availability
