18pcs Halogen Tubes PCD PCBN Vacuum Brazing Machine with Automatic Operation Mode

Product Description:

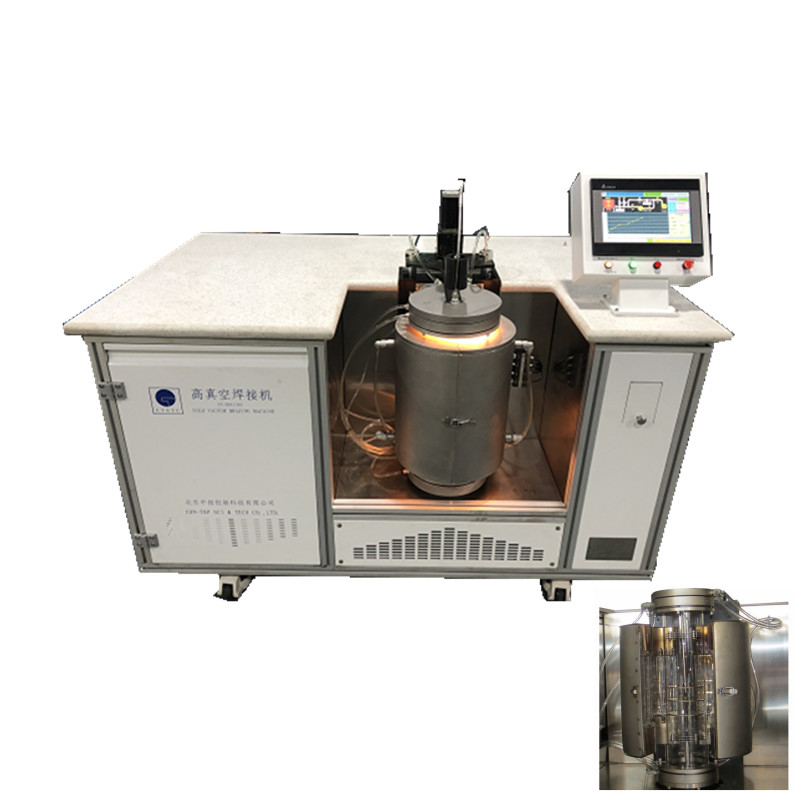

The Vacuum Brazing Machine boasts a spacious chamber size of 180*500mm, allowing for multiple inserts to be brazed at once. The chamber is made of high-quality Quartz Glass Tube, ensuring durability and longevity of the machine.

With a maximum temperature of 950°, this machine is capable of achieving high-quality brazing results. The Vacuum Brazing Machine is equipped with a precise temperature control system, ensuring accurate and consistent temperature throughout the brazing process.

The dimensions of the Vacuum Brazing Machine are L1600×W950×H900mm, making it compact and space-efficient. The machine is also designed with user-friendliness in mind, with an easy-to-use interface and simple operation.

Whether you are in the PCD/PCBN Tools industry or the Tungsten Carbide industry, this Vacuum Brazing Machine is the perfect solution for all your brazing needs. This High Temperature Vacuum Welder is capable of producing high-quality brazed joints that are strong, durable, and long-lasting.

Features:

• Product Name: Vacuum Brazing Machine
• Power Supply: 380V-3Phases-5Wires/20KW
• Chamber Size: 180*500mm
• Brazing Capability: CNGA1204 Appr. 600pcs/cycle
• Machine Type: Vacuum Welding/Brazing Machine
• Chamber: Quartz Glass Tube

Vacuum Welding Machine, Automatic Vacuum Machine for PCD/PCBN, Vacuum Brazing Device

Applications:

• Manufacturing plants producing cutting tools, such as saw blades, drills, and end mills.
• Tool repair shops that require precise and efficient welding of damaged PCD/PCBN tools.
• Research and development centers that need to conduct experiments and tests on PCD/PCBN tools.
• Automotive industry for welding of brake and clutch components.
• Aerospace industry for welding of turbine blades and other high-precision components.

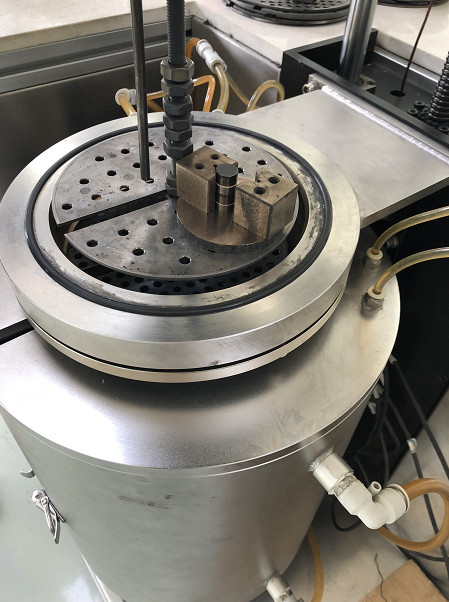

The Vacuum Brazing Machine can handle a maximum temperature of 950° with water cooling, ensuring high-quality and stable performance. The dimensions of the machine are L1600×W950×H900mm, with a power supply of 380V-3Phases-5Wires/20KW. The chamber is made of quartz glass tube, allowing for clear observation of the welding process.

The minimum order quantity for this product is 1 unit and the price is negotiable. The product is packaged in a sturdy plywood box for safe transportation and has a delivery time of 45-60 days. Payment terms include TT, LC, and Western Union.

Customization:

Our Vacuum Brazing Machine boasts a maximum vacuum rate of 10^-2 Pa and a weight of 600kg. With a brazing capability of CNGA1204 Appr. 600pcs/cycle, this machine is perfect for PCD/PCBN Tools Vacuum Brazing. Measuring L1600×W950×H900mm, it can fit comfortably in most workshops. The Power Supply is 380V-3Phases-5Wires/20KW which ensures efficient use of energy.

Packing and Shipping:

Product Packaging:

The Vacuum Brazing Machine will be securely packaged in a wooden crate to ensure that it arrives undamaged. The crate will be labeled with the product name and handling instructions for easy identification.

Shipping:

The Vacuum Brazing Machine will be shipped via a reliable freight service to the address provided by the customer. The shipping cost will be calculated based on the destination and weight of the product. Customers will receive a tracking number once the product has been shipped.
