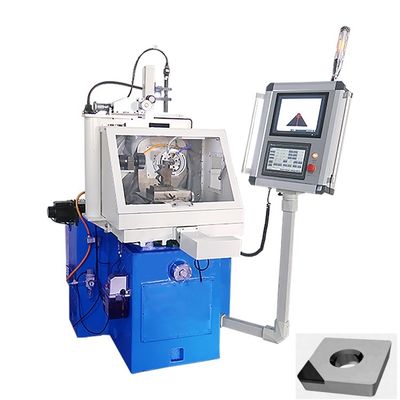

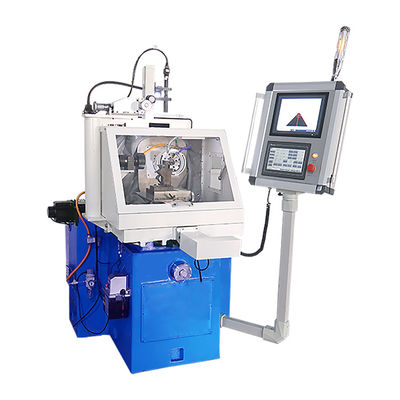

1450kgs PCD Grinding Machine With 300mm Optical Tube Distance And 210*160mm Cross Table Size

Product Description:

One of the standout features of the PCD Grinding Machine is its readout of linear gratings, which offers a high level of precision with a measurement accuracy of 0.001mm. This makes it an excellent choice for tasks that require a high level of accuracy, such as precision grinding and sharpening of PCD/PCBN tools.

The PCD Grinding Machine also has a tip radius of 0-70mm, which allows for grinding of a wide range of tip geometries. This feature makes it suitable for a variety of applications, including PCD grinding, hard materials grinding, and other precision grinding tasks.

Another key feature of the PCD Grinding Machine is its pixel size of 3.75um*3.75um. This allows for high-resolution imaging, which is essential for precision grinding tasks. The machine is also easy to use and features a user-friendly interface that allows for easy operation and adjustment of the grinding parameters.

Overall, the PCD Grinding Machine is an excellent choice for anyone looking for a high-speed and efficient grinder for PCD/PCBN tools, hard materials, and PCD grinding. Its precision and accuracy make it ideal for a variety of applications, and its user-friendly interface ensures that it is easy to use and adjust for different grinding tasks.

Applications:

CTSTC PCD Grinding Machine is a high-precision PCD/PCBN Tools grinder, specially designed to grind PCD/PCBN materials. The machine is made in China and comes with a CE certification. The minimum order quantity for the product is 1, and it is packaged in a sturdy plywood box for safe shipping. It takes 45-60 days for delivery, and payment can be made through TT/LC/Western Union.

The PCD grinding machine has an adjustable grinding wheel oscillation frequency of 0-45/min and a pixel size of 3.75um*3.75um. The size of the cross table is 210*160mm with 4T grooves, and the grinding wheel size is 150*40*40mm(D*H*T). The spindle speed is adjustable up to 0-42000RPM.

The CTSTC PCD Grinding Machine is suitable for a wide range of grinding applications. Some of the product application occasions and scenarios are:

• Automobile industry: The machine can be used to grind PCD/PCBN materials, which are widely used in the automobile industry for manufacturing engine parts, brake discs, and transmissions.
• Aerospace industry: The PCD grinding machine can be used to grind PCD/PCBN materials, which are extensively used in the aerospace industry for manufacturing turbine blades, engine components, and other critical parts.
• Mold industry: The machine can be used to grind PCD/PCBN materials, which are used in the mold industry for manufacturing precision molds and dies.
• Electronic industry: The PCD grinding machine can be used to grind PCD/PCBN materials, which are used in the electronic industry for manufacturing high-precision electronic components.

In conclusion, the CTSTC PCD Grinding Machine is a versatile and high-precision tool that can be used for a wide range of grinding applications. With its adjustable grinding wheel oscillation frequency, pixel size, and spindle speed, it can provide accurate and efficient grinding results. So, if you are looking for a reliable PCD/PCBN Tools grinder, the CTSTC PCD Grinding Machine is an excellent choice.

Support and Services:

Our PCD grinding machines are designed to provide consistent and reliable results for your diamond tool manufacturing needs. We offer a range of technical support and services to ensure that your machine is operating at peak performance. Our services include machine installation, training, maintenance, and repair. Our experienced technicians are available to provide assistance and answer any questions you may have about your machine's operation. We also offer a range of replacement parts and accessories to keep your machine running smoothly.

Packing and Shipping:

Product Packaging:

• The PCD Grinding Machine will be carefully packed in a sturdy cardboard box to ensure it arrives in perfect condition.
• All necessary accessories and parts will be included in the package.
• The package dimensions are 26 inches x 18 inches x 16 inches and it weighs 50 pounds.

Shipping:

• We offer free shipping to all locations within the United States.
• Orders will be processed within 24 hours and shipped out within 2-3 business days.
• You will receive a tracking number once your order has been shipped.
• For international orders, please contact us for shipping rates and delivery times.
