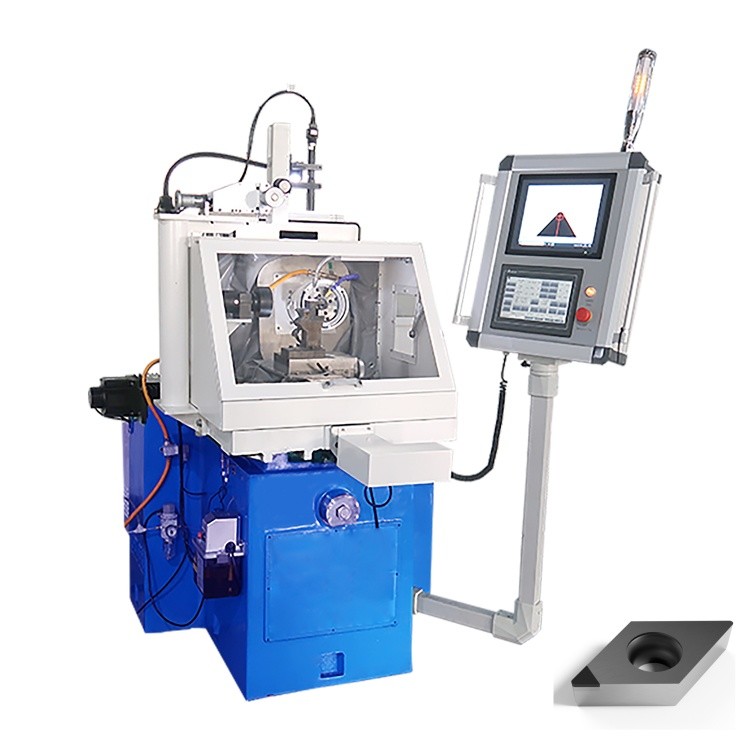

Precision PCD/PCBN Materials Grinder With 70mm Tip Radius 140mm Wheel Height Adjustment

Product Description:

One of the key features of the PCD Grinding Machine is the Grinding Wheel Height Adjustment, which has a maximum height of 140mm. This feature makes it possible to grind a wide range of PCD/PCBN materials, including those with a higher thickness. This feature is especially useful in businesses that require precision grinding and cutting services.

Another essential attribute of the PCD Grinding Machine is its Net Weight, which is 1450kgs. This weight makes the machine stable and sturdy, ensuring that it can handle heavy-duty grinding tasks with ease. Stability is crucial when it comes to grinding, as it helps to reduce vibrations, which can affect the quality of the grinding.

The PCD Grinding Machine also comes with a Readout of Linear Gratings, which has a precision level of 0.001mm. This feature makes it possible to achieve an accurate level of precision when grinding PCD/PCBN materials, ensuring the highest level of quality in the finished products.

Grinding Wheel Oscillation Distance is another feature of the PCD Grinding Machine. This feature allows the grinding wheel to move back and forth over a distance of 0-40mm, which can be adjusted to suit the needs of the user. This feature is essential in achieving a uniform grind, especially when dealing with PCD/PCBN materials.

The PCD Grinding Machine is also designed to handle a wide range of Tip Radius, which can range from 0-70mm. This feature is essential, especially when dealing with PCD/PCBN materials that have a range of thicknesses and shapes. This feature makes it possible to achieve a precise grind, even when dealing with complex shapes and sizes.

In conclusion, the PCD Grinding Machine is a must-have for businesses that deal with the production of cutting tools, especially those made from PCD/PCBN materials. Its advanced features such as Grinding Wheel Height Adjustment, Net Weight, Readout of Linear Gratings, Grinding Wheel Oscillation Distance, and Tip Radius make it an ideal machine for achieving precision grinding and cutting services. Overall, the PCD Grinding Machine is a reliable and efficient machine that will help businesses achieve their production goals with ease.

Technical Parameters:

This PCD/PCBN materials grinder is a hard materials grinder, designed to grind materials with a tip radius of 0-70mm.

Applications:

The PCD Grinding Machine is widely used in different industries, including automotive, aerospace, and woodworking. It is an excellent choice for grinding PCD/PCBN cutting tools, such as milling cutters, drills, and reamers. Additionally, it is also suitable for grinding tungsten carbide and other hard materials used in the manufacturing of precision components.

The PCD grinder is an essential tool for manufacturers who deal with PCD/PCBN materials. It is ideal for grinding and sharpening various cutting tools, including saw blades, drill bits, and other tools used in the woodworking industry. The PCD/PCBN materials grinder is also widely used in the aerospace industry to sharpen and regrind the cutting tools used in the manufacturing of aircraft components.

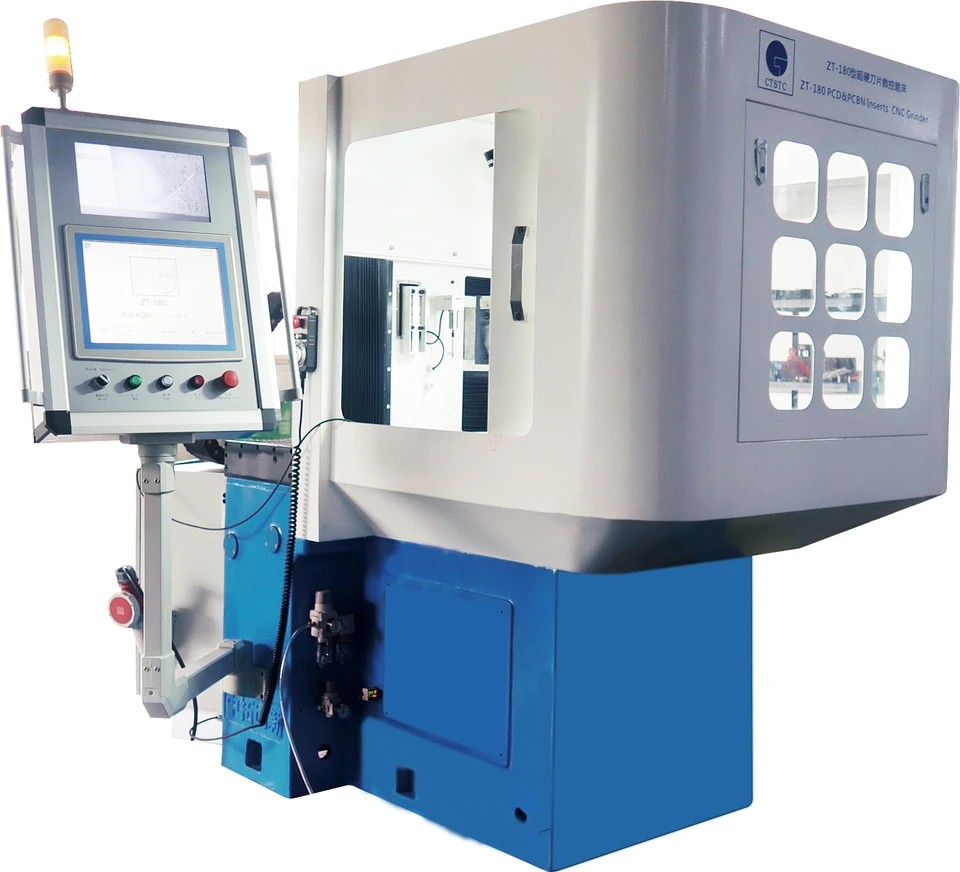

The CTSTC ZT-90CNC PCD Grinding Machine is a CE certified product of CHINA origin. It comes in a plywood box packaging and has a minimum order quantity of one unit. The delivery time for the product is between 45-60 days, and payment can be made via TT/LC/Western Union.

The PCD grinder has a grinding wheel height adjustment of 140mm and an optical tube distance of 300mm. It comes with a grinding wheel size of 150*40*40mm (D*H*T) and has a dimension of 1200*1168*1530mm (L*H*W). With these specifications, the PCD grinder is an efficient and reliable tool for various grinding tasks.

Support and Services:

The PCD Grinding Machine is a high-performance tool that is equipped with advanced features to provide accurate and efficient grinding of PCD tools. Our product technical support and services include:

1. Installation: Our team of experts will provide assistance in the installation of the PCD Grinding Machine and ensure that it is set up correctly to deliver optimal performance.

2. Training: We offer comprehensive training programs to our customers, covering all aspects of the PCD Grinding Machine's operation, maintenance, and troubleshooting.

3. Maintenance and Repair: Our technical support team is available to provide timely maintenance and repair services to ensure that your PCD Grinding Machine is running smoothly and efficiently.

4. Spare Parts: We maintain a comprehensive inventory of spare parts for the PCD Grinding Machine, ensuring that you have access to the parts you need when you need them.

5. Technical Support: Our team of technical experts is available round the clock to provide assistance and resolve any issues you may face with the PCD Grinding Machine.

Packing and Shipping:

Product Packaging:

• 1 x PCD Grinding Machine
• 1 x Grinding Wheel
• 1 x User Manual

Shipping:

• Shipping Method: Standard Shipping
• Estimated Delivery Time: 5-7 business days
• Shipping Cost: Free

FAQ:

Q1: What is the brand name of this grinding machine?

A1: The brand name of this grinding machine is CTSTC.

Q2: What is the model number of this grinding machine?

A2: The model number of this grinding machine is ZT-90CNC.

Q3: Where is this grinding machine made?

A3: This grinding machine is made in China.

Q4: Is this grinding machine certified?

A4: Yes, this grinding machine is certified with CE.

Q5: What are the payment terms for purchasing this grinding machine?

A5: The payment terms for purchasing this grinding machine are TT/LC/Western Union.

Q6: What is the minimum order quantity for this grinding machine?

A6: The minimum order quantity for this grinding machine is 1.

Q7: How is this grinding machine packaged for shipping?

A7: This grinding machine is packaged in a plywood box.

Q8: What is the delivery time for this grinding machine?

A8: The delivery time for this grinding machine is 45-60 days.
