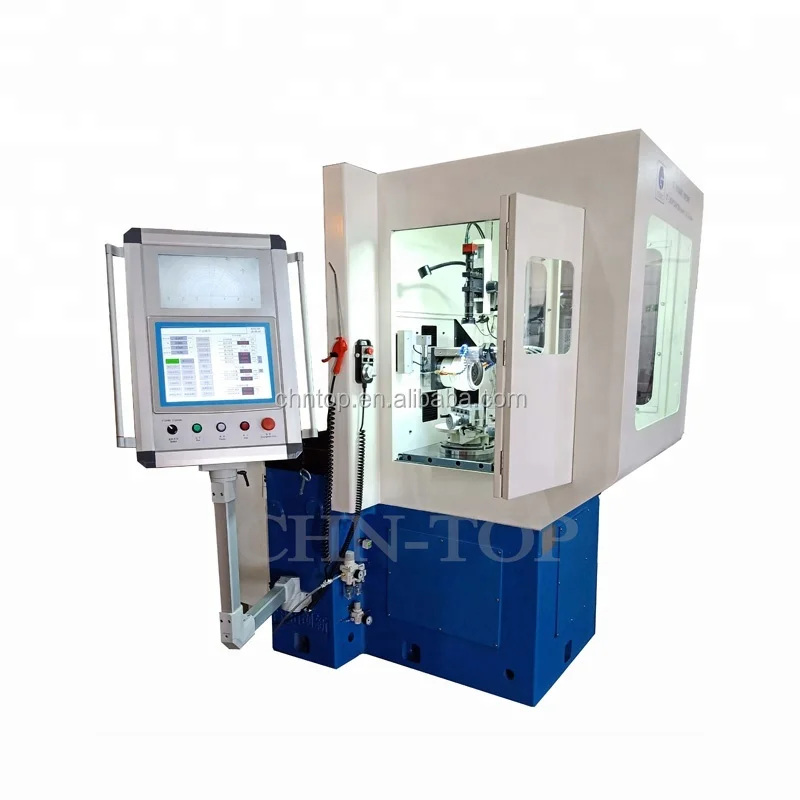

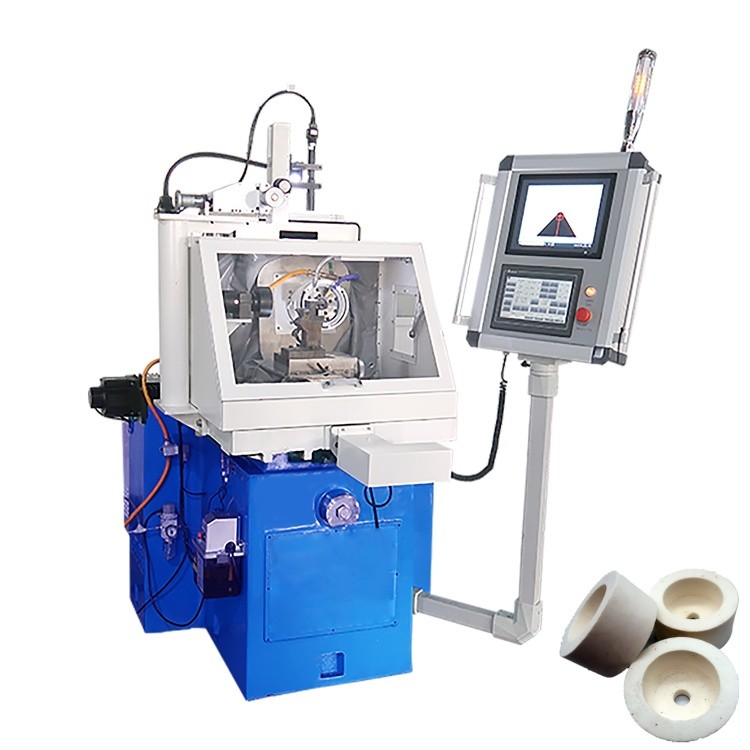

PCD/PCBN 1280dpi*960dpi Grinding Machine With 0-70mm Tip Radius
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Optical Tube Distance | 300mm | Tip Radius | 0-70mm |
|---|---|---|---|
| Grinding Wheel Size | 150*40*40mm(D*H*T) | Grinding Pressure | 0-450N(adjustable) |
| Image System Resolution | 1280dpi*960dpi | Name | PCD/PCBN Grinding Machine |
| Net Weight | 1450kgs | Grinding Wheel Inclination | -13°~+24° |
| Highlight | 1280dpi PCBN Grinding Machine,70mm Tip Radius Grinding Machine,1280dpi*960dpi Grinding Machine |
||
Product Description
Product Description:
The PCD Grinding Machine's image system resolution is an impressive 1280dpi*960dpi, providing clear and precise images to the operator during use. The size of the cross table is 210*160mm with 4T grooves, offering ample space for a variety of grinding applications. Additionally, the spindle speed is adjustable up to 0-42000RPM, allowing for greater control and precision during use.
Whether you're a professional machinist or a hobbyist looking to take on challenging grinding tasks, the PCD Grinding Machine is an ideal choice. Its durable construction ensures long-lasting performance, while its advanced features allow for greater precision and control. With its ability to handle hard materials with ease, the PCD Grinding Machine is a must-have for any workshop or manufacturing facility.
Technical Parameters:
| Product Attribute | Technical Specification |
| Image System Resolution | 1280dpi*960dpi |
| Grinding Wheel Size | 150*40*40mm(D*H*T) |
| Grinding Wheel Oscillation Frequency | 0-45/min(adjustable) |
| Spindle Speed | 0-42000RPM(adjustable) |
| Grinding Wheel Inclination | -13°~+24° |
| Tip Radius | 0-70mm |
| Cross Table Swiveling Angle | 270° |
| Dimension | 1200*1168*1530mm(L*H*W) |
| Net Weight | 1450kgs |
| Size of Cross Table | 210*160mm With 4T Grooves |
Applications:
With a minimum order quantity of 1 and delivery time of 45-60 days, the ZT-90CNC PCD grinder is perfect for manufacturing facilities and tool-grinding shops. Packaged in a sturdy plywood box, this product is well-protected during transport.
Thanks to its high spindle power of 2.2 kW, the PCD grinding machine can handle even the toughest materials. The optical tube distance of 300mm and readout of linear gratings at 0.001mm ensure that the grinder can achieve the desired level of precision.
The grinding wheel height adjustment of 140mm allows for flexibility in the grinding process, while the size of cross table of 210*160mm with 4T grooves adds stability and accuracy to the machine.
PCD grinding machines are essential tools for the manufacturing of cutting tools, wear parts, and other industrial components made from PCD. The ZT-90CNC PCD grinder is especially useful for grinding PCD inserts and other PCD components for the automotive, aerospace, and medical industries.
Whether you're a manufacturing facility looking to improve your tool-grinding capabilities or a tool-grinding shop looking to expand your capabilities, the ZT-90CNC PCD grinding machine is an excellent choice. With multiple payment options available, including TT, LC, and Western Union, this PCD grinder is a great investment for your business.
Support and Services:
The PCD Grinding Machine is designed to grind and hone PCD (polycrystalline diamond) and PCBN (polycrystalline cubic boron nitride) tools. Our technical support team is available to assist with any questions or issues you may have with the machine, including installation, operation, and maintenance. We also offer a range of services to ensure optimal performance of the machine, such as calibration, repair, and training for your technicians. Our goal is to provide you with the highest level of support and service for your PCD Grinding Machine.
Packing and Shipping:
Product Packaging:
The PCD Grinding Machine product comes in a sturdy cardboard box with foam inserts to protect the contents during shipping. The box measures 18 inches x 12 inches x 10 inches and weighs approximately 35 pounds. The product is disassembled for shipping purposes and comes with easy-to-follow instructions for assembly.
Shipping:
The PCD Grinding Machine product will be shipped via standard ground shipping. Shipping costs will be calculated at checkout based on your location. Please allow 3-5 business days for processing and an additional 5-7 business days for shipping. If you require expedited shipping, please contact our customer service team for options and pricing.
FAQ:
A: The brand name of this grinding machine is CTSTC.
Q: What is the model number of this grinding machine?
A: The model number of this grinding machine is ZT-90CNC.
Q: Where is this grinding machine made?
A: This grinding machine is made in China.
Q: Does this grinding machine have any certification?
A: Yes, this grinding machine is CE certified.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1.
Q: What is the packaging detail for this product?
A: The packaging detail for this product is plywood box.
Q: What is the delivery time for this product?
A: The delivery time for this product is 45-60 days.
Q: What are the payment terms for this product?
A: The payment terms for this product are TT/LC/Western Union.
