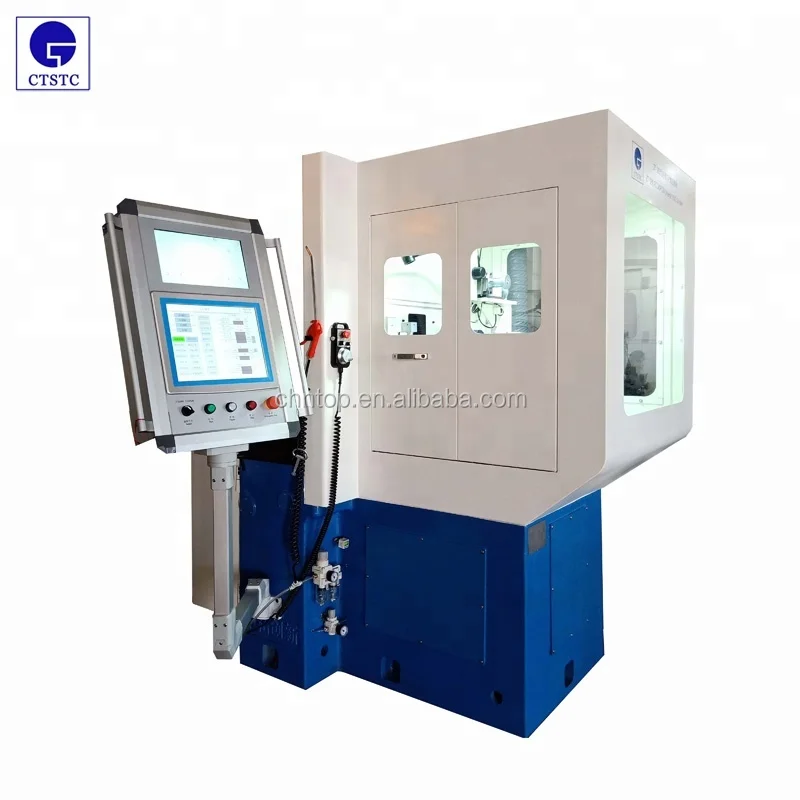

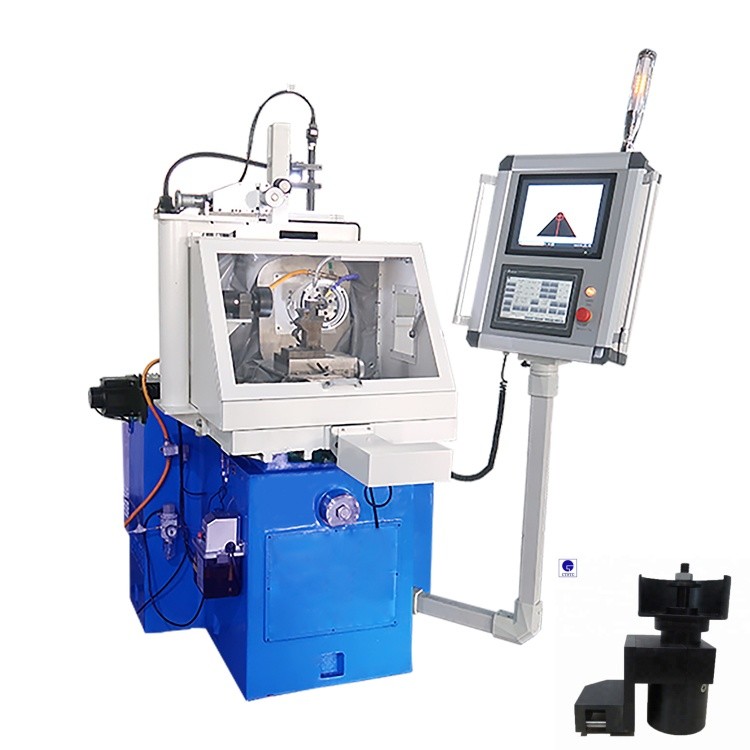

Advanced PCD Grinding Machine with Adjustable Spindle Speed / Grinding Pressure

Product Description:

The PCD Grinding Machine features an optical tube distance of 300mm, providing ample space for grinding even the most complex of shapes. This makes it ideal for grinding hard materials such as PCD and PCBN, which require a high level of precision and accuracy in order to achieve the desired results.

The tip radius of the PCD Grinding Machine is adjustable, ranging from 0-70mm. This allows you to grind a wide range of shapes and sizes with ease, giving you the flexibility you need to take on any project that comes your way.

The grinding pressure of the machine is also adjustable, ranging from 0-450N. This allows you to fine-tune the machine to your specific needs, ensuring that you get the best possible results every time you use it. Whether you're grinding a small piece or a large one, this machine is capable of handling it all.

The net weight of the PCD Grinding Machine is 1450kgs, making it sturdy and durable enough to handle even the toughest of materials. Its heavy-duty construction ensures that it can withstand the rigors of daily use, making it a reliable choice for professionals in the industry.

One of the unique features of the PCD Grinding Machine is its image magnification capability. With a range of 45-250 times (digital zoom), you can get a closer look at your work than ever before. This makes it easier to identify any imperfections or errors, allowing you to make corrections quickly and efficiently.

Overall, the PCD Grinding Machine is a must-have for anyone looking to grind hard materials with precision and accuracy. Its adjustable tip radius and grinding pressure, along with its sturdy construction and image magnification capability, make it the perfect tool for professionals in the industry.

Technical Parameters:

This is a technical parameter table for the PCD/PCBN materials grinder or PCD grinding machine. It has a grinding wheel traveling range of 170mm, a cross table swiveling angle of 270°, and a tip radius of 0-70mm. The optical tube distance is 300mm and the net weight is 1450kgs. The grinding wheel oscillation distance is adjustable from 0-40mm and the grinding pressure is adjustable up to 450N. The readout of linear gratings is 0.001mm. It has an image system resolution of 1280dpi*960dpi and a pixel size of 3.75um*3.75um.

Applications:

The CTSTC ZT-90CNC PCD grinding machine is designed for grinding hard materials such as polycrystalline diamond (PCD) and other hard materials. The grinding wheel oscillation distance of this product is adjustable up to 40mm. The spindle power of this product is 2.2kw which provides high torque and ensures efficient grinding. The pixel size of this product is 3.75um*3.75um which provides high accuracy and precision during the grinding process.

The readout of linear gratings of this product is 0.001mm which ensures high precision and accuracy. The size of the cross table of this product is 210*160mm with 4T grooves which ensures that the material being grinded is held in place firmly during the grinding process.

The CTSTC ZT-90CNC PCD grinding machine is ideal for grinding hard materials such as PCD. It can be used in various occasions and scenarios such as in the manufacturing of cutting tools, automotive components, and aerospace components. This product is also suitable for grinding and sharpening PCD tools, which are commonly used in the woodworking industry.

Overall, the CTSTC ZT-90CNC is a high-quality PCD grinding machine that is designed for grinding hard materials. Its high precision and accuracy make it suitable for various occasions and scenarios where hard materials grinder is required.

Support and Services:

Our PCD Grinding Machine product comes with comprehensive technical support and services to ensure optimal performance and longevity. Our team of experts is available to assist with installation, training, and ongoing maintenance. We also offer troubleshooting and repair services to quickly address any issues that may arise. In addition, we provide regular software updates and upgrades to improve functionality and keep your machine up-to-date with the latest technology.

Packing and Shipping:

Product Packaging:

• 1 PCD Grinding Machine
• 1 Grinding Wheel
• 1 User Manual

Shipping:

• Ships within 2-3 business days
• Free standard shipping within the US
• International shipping available for an additional fee

FAQ:

Q1: What is the brand name of this grinding machine?

A1: The brand name of this grinding machine is CTSTC.

Q2: What is the model number of this grinding machine?

A2: The model number of this grinding machine is ZT-90CNC.

Q3: Where is this grinding machine made?

A3: This grinding machine is made in China.

Q4: Is this grinding machine certified?

A4: Yes, this grinding machine is CE certified.

Q5: What are the payment terms and delivery time for this grinding machine?

A5: The payment terms for this grinding machine are TT/LC/Western Union and the delivery time is 45-60 days. The minimum order quantity is 1 and the machine is packaged in a plywood box.
