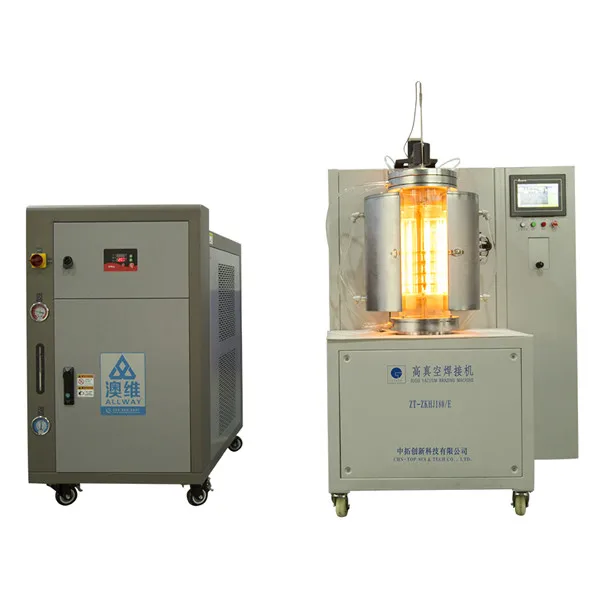

Powerful 380V-3Phases-5Wires/20KW Vacuum Brazing Machine For High Temperature Brazing

Product Description:

Vacuum Brazing Machine - The Ultimate Welding Solution

Introducing the Vacuum Brazing Machine, the latest innovation in welding technology. With its advanced features and cutting-edge design, this machine offers the perfect solution for all your welding needs.

Max Vacuum Rate: 10^-2 Pa

The Vacuum Brazing Machine is equipped with a powerful vacuum pump that can achieve a maximum vacuum rate of 10^-2 Pa. This ensures a clean and precise welding process, free from any contaminants or impurities.

Power Supply: 380V-3Phases-5Wires/20KW

The machine runs on a 380V-3Phases-5Wires power supply with a power output of 20KW. This provides a stable and efficient power source for all your welding operations.

Vacuum Process:

1. Cleaning: The first step in the vacuum welding process is to clean the surfaces of the materials to be welded. This ensures a strong and seamless bond between the materials.
2. Fixing Flux: The next step is to apply a flux on the surfaces of the materials. This flux helps in removing any oxides or impurities and promotes better bonding between the materials.
3. Drying At The Temperature Of 200℃ For 30mins: Once the flux is applied, the materials are placed in the Vacuum Brazing Machine and dried at a temperature of 200℃ for 30 minutes. This helps in removing any remaining moisture and ensures a clean and dry surface for welding.
4. Brazing: Finally, the materials are brazed together in the vacuum chamber. The high vacuum environment and precise temperature control ensure a strong and seamless bond between the materials.

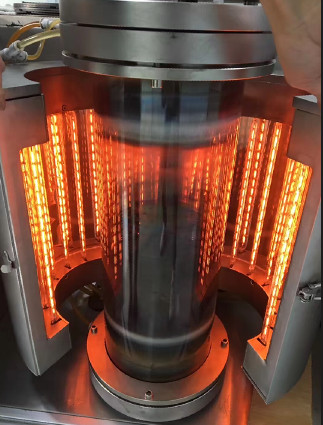

Chamber: Quartz Glass Tube

The Vacuum Brazing Machine is equipped with a quartz glass tube chamber, which provides a high degree of transparency. This allows for easy monitoring of the welding process and ensures a clean and contaminant-free environment for welding.

Chilling: Water Cooling

To prevent overheating and maintain a stable temperature during the welding process, the Vacuum Brazing Machine comes with a built-in water cooling system. This ensures a smooth and efficient welding process with minimal downtime.

With its advanced features and precise welding capabilities, the Vacuum Brazing Machine is the ultimate solution for all your welding needs. So why wait? Get your hands on this cutting-edge product and experience the power of vacuum welding today!

Keywords: Vacuum Welding Machine, Vacuum Brazing Device, Diamond Vacuum Brazing Device

Features:

• Product Name: Vacuum Brazing Machine
• Brazing Capability: CNGA1204 Appr. 600pcs/cycle
• Power Supply: 380V-3Phases-5Wires/20KW
• Vacuum Process:
  1. Cleaning
  2. Fixing Flux
  3. Drying At The Temperature Of 200℃ For 30mins
  4. Brazing
• Operation Mode: Automatic
• Chilling: Water Cooling
• PCD/PCBN Tools Vacuum Brazing Machine
• Vacuum Welding Machine
• Tungsten Carbide Vacuum Brazing Machine



Technical Parameters:

Technical Specifications	Vacuum Brazing Machine
Machine Type	Vacuum Welding/Brazing Machine
Weight	600kg
Chamber	Quartz Glass Tube
Guarantee	1 Year
Operation Mode	Automatic
Brazing Capability	CNGA1204 Appr. 600pcs/cycle
Power Supply	380V-3Phases-5Wires/20KW
Max Vacuum Rate	10^-2 Pa
Vacuum Process	1. Cleaning, 2. Fixing Flux, 3. Drying At The Temperature Of 200℃ For 30mins, 4. Brazing
Dimensions	L1600×W950×H900mm



Applications:

Vacuum Brazing Machine for PCD/PCBN/CVD Diamond Tools

Brand Name: CTSTC

Model Number: ZT-ZHKJ180E

Place of Origin: CHINA

Certification: CE

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: plywood box

Delivery Time: 45-60 days

Payment Terms: TT/LC/Western Union

Guarranty: 1 Year

The Vacuum Brazing Machine, manufactured by CTSTC, is a state-of-the-art automatic vacuum machine designed specifically for PCD/PCBN/CVD diamond tools. Its model number is ZT-ZHKJ180 and it is proudly made in CHINA.

The machine has been certified by CE, ensuring its quality and safety standards. It has a minimum order quantity of 1 and the price is negotiable, making it accessible to a wide range of customers. The packaging of the machine is done in a sturdy plywood box, ensuring safe transportation. The delivery time for the machine is 45-60 days, depending on the location, and the payment terms accepted are TT, LC, and Western Union.

One of the key features of the Vacuum Brazing Machine is its ability to perform brazing using the CNGA1204 tool, with a capability of approximately 600 pieces per cycle. This makes it a highly efficient and time-saving machine, perfect for mass production.

The machine weighs 600kg and requires a power supply of 380V-3Phases-5Wires/20KW. Its compact dimensions of L1600×W950×H900mm make it easy to fit into any workshop or factory.

The Vacuum Brazing Machine is designed to provide a clean and controlled environment for the brazing process, making it ideal for PCD/PCBN/CVD diamond tools. Its vacuum technology ensures that there is no contamination or oxidation during the brazing process, resulting in high-quality and durable tools.

With its automatic operation, the Vacuum Brazing Machine eliminates the need for manual labor, reducing the risk of human error and increasing the efficiency of the production process. It also comes with a 1-year warranty, providing peace of mind to customers.

Overall, the Vacuum Brazing Machine by CTSTC is a reliable and efficient choice for any company involved in the production of PCD/PCBN/CVD diamond tools. Its advanced technology, high-quality materials, and precise performance make it a valuable addition to any workshop or factory.

Customization:

Brand Name: CTSTC

Model Number: ZT-ZHKJ180

Place of Origin: CHINA

Certification: CE

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: plywood box

Delivery Time: 45-60 days

Payment Terms: TT/LC/Western Union

Power Supply: 380V-3Phases-5Wires/20KW

Dimensions: L1600×W950×H900mm

Chamber Size: 180*500mm

Vacuum Process: 1.Cleaning,2. Fixiing Flux,3.Drying At The Temperature Of 200℃ For 30mins,4.Brazing

Guarranty: 1 Year

At CTSTC, we understand that every customer has unique needs and requirements. That's why we offer customization services for our Vacuum Brazing Machine to ensure it meets your specific needs.

Our Vacuum Brazing Machine is a state-of-the-art device designed for diamond vacuum brazing and soldering of PCD/PCBN tools. With our customization service, you can tailor the machine to your specific requirements, making it the perfect fit for your business.

Some of the customizable features of our Vacuum Brazing Machine include:

• Power Supply: We can adjust the power supply to meet your specific voltage and phase requirements.
• Dimensions: If you have limited space in your workshop, we can adjust the dimensions of the machine to fit your space.
• Chamber Size: We can customize the chamber size to accommodate larger or smaller tools.
• Vacuum Process: Our Vacuum Brazing Machine comes with a standard vacuum process of 1.Cleaning,2. Fixiing Flux,3.Drying At The Temperature Of 200℃ For 30mins,4.Brazing. However, we can customize the process to fit your specific brazing needs.
• Guarantee: We offer a standard 1-year guarantee with our Vacuum Brazing Machine. But if you require a longer guarantee period, we can customize it for you.

With our Vacuum Brazing Machine Customization Service, you can have a machine that is perfectly tailored to your business needs, giving you the best results and maximizing your efficiency and productivity.

Support and Services:

Our Vacuum Brazing Machine is designed and manufactured to provide efficient and reliable brazing solutions for your industrial needs. We understand the importance of technical support and services in ensuring the optimal performance of our machine, and we are committed to providing you with the best support possible.

Our team of experienced engineers and technicians are available to provide technical support for any issues you may encounter with our Vacuum Brazing Machine. Whether it's troubleshooting, maintenance, or upgrades, our team is dedicated to ensuring that your machine is running at its best at all times.

We offer on-site installation and training services to ensure that your Vacuum Brazing Machine is set up and operated correctly. Our trained professionals will guide you through the installation process and provide comprehensive training on how to use and maintain the machine to achieve optimal results.

We understand that every industry and application may have unique requirements, which is why we offer customization services to tailor our Vacuum Brazing Machine to your specific needs. In addition, we also provide upgrades and retrofitting services to keep your machine up-to-date with the latest technologies and advancements.

We offer a wide range of spare parts and maintenance services to ensure the longevity and optimal performance of your Vacuum Brazing Machine. Our team can assist you in identifying the right parts for your machine and provide regular maintenance to keep it running smoothly.

In addition to on-site support, we also provide remote support services for troubleshooting and technical assistance. Our team can remotely access your machine to diagnose and resolve any issues, saving you time and resources.

Choose our Vacuum Brazing Machine for reliable and efficient brazing solutions, backed by our exceptional technical support and services. Contact us today for more information.
