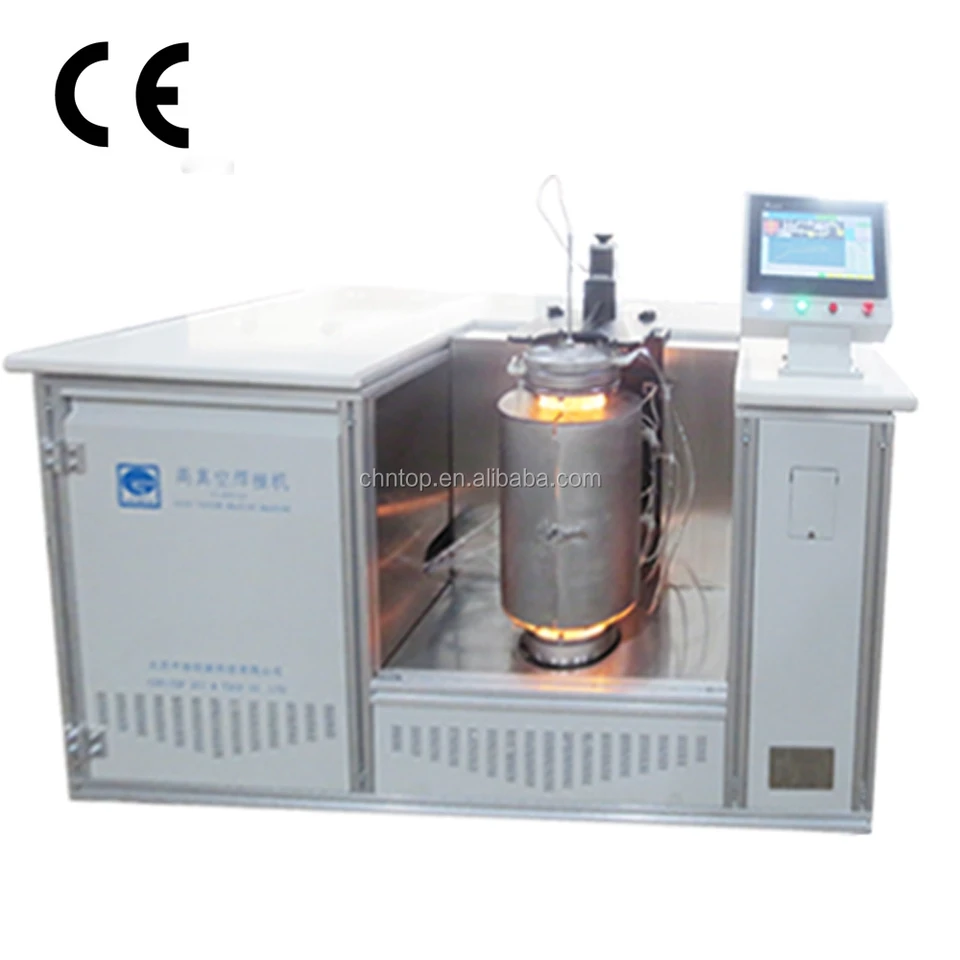

600kg Vacuum Brazing Machine for PCD/PCBN Inserts in Welding

Product Description:

The Vacuum Brazing Machine is a state-of-the-art automatic vacuum machine designed specifically for brazing and soldering PCD/PCBN (polycrystalline diamond/cubic boron nitride) ultra-hard materials. With its compact design and advanced technology, this machine is the perfect solution for all your vacuum soldering needs.

The Vacuum Brazing Machine has a compact design with dimensions of L1600×W950×H900mm, making it easy to fit into any workspace. Its small size does not compromise its efficiency, making it ideal for both small and large scale production.

The machine is equipped with a water cooling system, ensuring efficient and consistent cooling during the brazing process. This helps to maintain the integrity of the materials and produce high-quality results.

The Vacuum Brazing Machine is a vacuum welding/brazing machine, meaning it operates under a vacuum environment to ensure the highest level of precision and quality in the brazing process. This type of machine is known for its ability to produce strong, reliable, and high-quality bonds between materials.

The Vacuum Brazing Machine uses 18 pieces of halogen tubes as its heating source. These tubes provide consistent and precise heat distribution, ensuring the perfect temperature for the brazing process.

The machine's chamber size measures 180*500mm, providing enough space to accommodate various sizes and shapes of materials. This allows for flexibility in production and the ability to work with a wide range of materials.

• Automatic Vacuum Machine for PCD/PCBN
• Vacuum Soldering Equipment
• Vacuum Brazing System for Ultra-hard Materials
• Compact Design
• Water Cooling System
• Efficient Heating Source
• Precise and Consistent Results

Overall, the Vacuum Brazing Machine is a top-of-the-line product that combines advanced technology, compact design, and efficient features to provide the best solution for vacuum soldering and brazing of ultra-hard materials. Its versatility and precision make it the perfect choice for all your vacuum brazing needs.

Features:

• Product Name: Vacuum Brazing Machine
• Machine Type: Vacuum Welding/Brazing Machine
• Weight: 600kg
• Brazing Capability: CNGA1204 Appr. 600pcs/cycle
• Operation Mode: Automatic
• Application: PCD/PCBN Inserts Brazing
• High Temperature Vacuum Welder
• Vacuum Soldering Equipment
• Diamond Vacuum Brazing Device

Technical Parameters:

A high temperature vacuum welder for PCD/PCBN inserts brazing.

High temperature vacuum welder for PCD/PCBN inserts brazing, suitable for tungsten carbide materials. Efficient and automatic operation mode for precise and consistent results. Comes with a 1 year guarantee for peace of mind. Perfect for industrial use.

Applications:

The Vacuum Brazing Machine is a high-quality, efficient and reliable product designed and produced by CTSTC, a leading manufacturer of vacuum brazing equipment in China. With its advanced technology and superior performance, the Vacuum Brazing Machine is widely used in various industries for high temperature brazing and vacuum brazing processes.

• Brand Name: CTSTC
• Model Number: ZT-ZHKJ180
• Place of Origin: China
• Certification: CE
• Minimum Order Quantity: 1
• Price: Negotiable
• Packaging Details: Plywood Box
• Delivery Time: 45-60 days
• Payment Terms: TT/LC/Western Union
• Power Supply: 380V-3Phases-5Wires/20KW
• Dimensions: L1600×W950×H900mm
• Weight: 600kg
• Max Temperature: 950°
• Chilling: Water Cooling

The Vacuum Brazing Machine is suitable for a wide range of applications and scenarios, such as:

• Automotive Industry: The Vacuum Brazing Machine is used for brazing various automotive components, such as heat exchangers, radiators, and condensers. Its high temperature and vacuum environment ensures strong and durable joints for these critical components.
• Aerospace Industry: The Vacuum Brazing Machine is used for brazing critical components in the aerospace industry, such as engine parts, turbine blades, and heat shields. Its high vacuum and precise temperature control capabilities ensure the highest quality brazing for these sensitive components.
• Electronics Industry: The Vacuum Brazing Machine is used for brazing electronic components, such as power modules, transistors, and sensors. Its high temperature brazing and vacuum environment ensure reliable and efficient connections for these sensitive components.
• Medical Industry: The Vacuum Brazing Machine is used for brazing medical devices and instruments, such as implants, surgical tools, and dental instruments. Its high vacuum and precise temperature control capabilities ensure the highest quality brazing for these critical medical components.
• Research and Development: The Vacuum Brazing Machine is also used in research and development environments for testing and developing new materials and processes. Its high temperature and vacuum capabilities allow for advanced research and experimentation in various industries.

With its advanced technology, superior performance, and wide range of applications, the Vacuum Brazing Machine from CTSTC is the ideal choice for all your high temperature brazing and vacuum brazing needs. Contact us today to learn more about our product and to place your order.

Customization:

Brand Name: CTSTC

Model Number: ZT-ZHKJ180

Place of Origin: CHINA

Certification: CE

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: plywood box

Delivery Time: 45-60 days

Payment Terms: TT/LC/Western Union

Machine Type: Vacuum Welding/Brazing Machine

Power Supply: 380V-3Phases-5Wires/20KW

Brazing Capability: CNGA1204 Appr. 600pcs/cycle

Max Temperature: 950°

Chamber Size: 180*500mm

Our Vacuum Brazing Machine, also known as Vacuum Welding Machine, is a customizable product designed and manufactured by CTSTC in CHINA. It is a high-quality machine that is CE certified and can be customized according to the specific requirements of our customers.

The model number of our Vacuum Brazing Machine is ZT-ZHKJ180, and it is suitable for brazing ultra hard materials. It has a maximum temperature of 950° and a chamber size of 180*500mm. With a power supply of 380V-3Phases-5Wires/20KW, it has a brazing capability of CNGA1204 Appr. 600pcs/cycle.

We offer flexible payment terms such as TT, LC, and Western Union, and the minimum order quantity for our Vacuum Brazing Machine is 1 unit. The price is negotiable and it includes a sturdy plywood box for packaging. The delivery time for this customized machine is 45-60 days, ensuring timely delivery to our customers.

Our Vacuum Brazing Machine is a reliable and efficient solution for vacuum welding and brazing of ultra hard materials. Trust CTSTC for your vacuum brazing system needs and experience superior quality and service.

Support and Services:

Our Vacuum Brazing Machine is designed with high-quality materials and advanced technology to ensure reliable and efficient performance. In addition to our top-of-the-line equipment, we also provide comprehensive technical support and services to meet the needs of our customers.

Our team of highly skilled engineers and technicians are available to provide technical support for any questions or issues you may have with our Vacuum Brazing Machine. We offer remote assistance as well as on-site visits to troubleshoot and resolve any problems that may arise.

We offer training programs for our Vacuum Brazing Machine to ensure that our customers are able to operate and maintain the equipment properly. Our training sessions cover topics such as machine operation, maintenance, and troubleshooting.

We understand the importance of keeping your Vacuum Brazing Machine running smoothly. That's why we offer a wide range of spare parts for our equipment, ensuring quick and easy replacement whenever necessary.

We are committed to continuously improving our Vacuum Brazing Machine and offer upgrades and customization options to meet the specific needs of our customers. Our team will work closely with you to design and implement any modifications or upgrades required for your application.

To ensure the longevity and optimal performance of your Vacuum Brazing Machine, we offer service contracts for regular maintenance and inspections. Our team will work with you to create a customized service plan based on your specific needs and usage.

We understand that equipment downtime can be costly, which is why we offer 24/7 customer support to assist with any urgent technical issues. Our dedicated team is always available to provide prompt and efficient support to minimize any disruptions to your operations.

With our commitment to quality and customer satisfaction, you can trust our Vacuum Brazing Machine and our comprehensive technical support and services to meet your needs and exceed your expectations.
