PCD Cutters Use Fiber Laser Engraving Machine With CCD System
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | ZT-JGDK200 | Fiber Type | Fiber Laser |
|---|---|---|---|
| Application | PDC Cutter Engraving | PCD Material | PCD Blank ,rotary Tools |
| Highlight | CCD Fiber Laser Engraving Machine,PCD Cutters laser Engraving Machine |
||
You can tick the products you need and communicate with us in the message board.
| Laser Source | Fiber (German original laser) | |
|---|---|---|
| Control Method | Software | |
| Laser Power | 30W | |
| Wave Length | 1064 | |
| Laser Mode | TM01 | |
| Beam Full Divergence | 1.5-2.0rad | |
| Focus Adjusting Range | 0-30mm | |
| Location Mode | CCD Coaxial | |
| Motion Control | 3 axis + optical 2 axis |
Product Description
FIBER LASER ENGRAVING MACHINE FOR PCD PDC CUTTING ENGRAVING MACHINE PDC DIAMOND TOOLS ENGRAVING MACHINE
ZT-JGDK200 Ultra-hard tools’ laser engraving machine is mainly used for precision chip breaker and positioned hole machining of ultra-hard tools (PCD, PCBN, SOLID CBN, etc.)
Components: FIBER LASER, COAXIAL MONITORING SYSTEM, PRECISION working table and CNC system

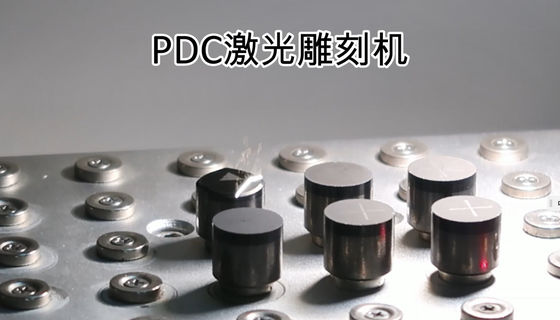

Now the almost of the PDC cutters are flat surface, With the improvement of the efficiency of petroleum exploration and geological exploration industry, compared with the requirements of high speed and high pressure drilling technology, the original plane PDC bit cutting tooth technology has reached the bottleneck. Therefore, the process improvement must be carried out on the existing PDC cutterNow the almost of the PDC cutters are flat surface, With the improvement of the efficiency of petroleum exploration and geological exploration industry, compared with the requirements of high speed and high pressure drilling technology, the original plane PDC bit cutting tooth technology has reached the bottleneck. Therefore, the process improvement must be carried out on the existing PDC cutter
Design Features

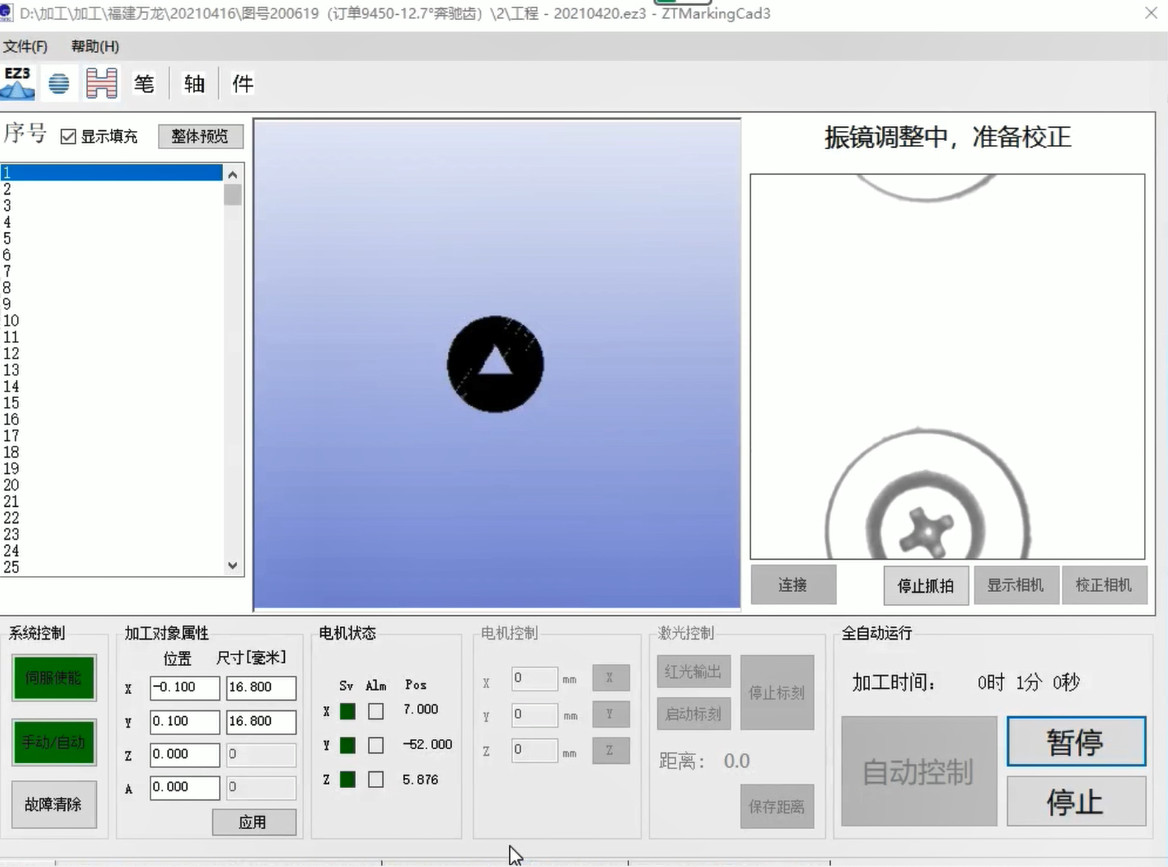

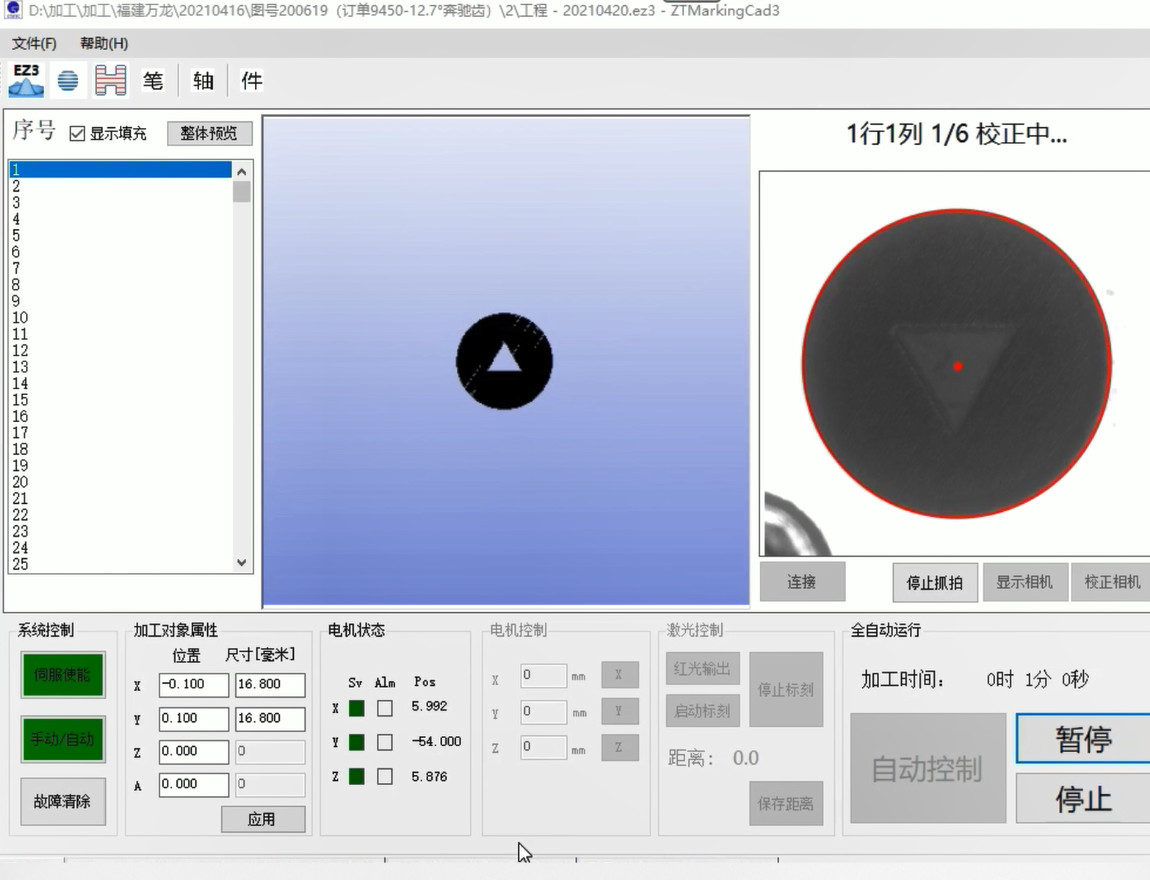

- CCD Monitorning system , more accurate positioned
- German orginal laser source, more stable performance
- One button operation interface, more simple operation
- Cutting efficiency:1-10um per layer
- Max cutting thickness: 1mm
- 24 hours working, no consumables, laser maintenance free
Technical Parameters:
Application
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and service, we have our own R&D
team and production workshop. We can develop our customers' unique products according to their needs.
Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and 45-60 days for machines.
Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide one-on-one online video service
according to the needs of customers, and one-on-one service to solve customers' worries.
Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement with international big brands,
customers do not need to worry about genuine and delivery problems;
2), We can provide a wide range of products with PCD/ PCBN Blank, customers can choose goods according
to different needs, we also have self-developed domestic PCD with high quality, the price is very competitive.
Q: How about the cutting thickness and width of Laser cutting machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of 4-5mm, double-sided cutting maximum
thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
