CTSTC Fiber Laser Engraving Machine , 30w Fiber Laser Marking Machine For Diamond Tools

  • CTSTC Fiber Laser Engraving Machine , 30w Fiber Laser Marking Machine For Diamond Tools
  • CTSTC Fiber Laser Engraving Machine , 30w Fiber Laser Marking Machine For Diamond Tools
  • CTSTC Fiber Laser Engraving Machine , 30w Fiber Laser Marking Machine For Diamond Tools
  • CTSTC Fiber Laser Engraving Machine , 30w Fiber Laser Marking Machine For Diamond Tools
Place of Origin China
Brand Name CTSTC
Certification CE
Model Number ZT-JGDK26
Minimum Order Quantity 1set
Price $1.00
Packaging Details Wooden case
Delivery Time within 60 days
Payment Terms L/C, D/P, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source Fiber CNC Yes
Application Laser Engraving, PCD/CBN Monocrystals Diamond Chip In The Rake Applicable Material Metal, Stone, Wood
Graphic Format Supported Orted: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP Condition New
Cooling Mode Water Cooling
Highlight

CTSTC Fiber Laser Engraving Machine

,

30w Fiber Laser Engraving Machine
Leave a Message
Product Description

Fiber laser engraving machine diamond tools’ chip breaker ZT-JGDK26

Quick Details

1, CCD monitoring system
2, German original laser source
3, One button operating interface
4, Cutting efficiency: 1-10um per layer;
5, Max cutting thickness:1mm;
6, 24 hours working, no consumables, laser maintenance free.



Description:

ZT-JGDK26 Ultra-hard tools’ laser engraving machine is mainly used for precision chip breaker and positioned hole machining of ultra-hard tools.

CTSTC Fiber Laser Engraving Machine , 30w Fiber Laser Marking Machine For Diamond Tools 0

CTSTC Fiber Laser Engraving Machine , 30w Fiber Laser Marking Machine For Diamond Tools 1CTSTC Fiber Laser Engraving Machine , 30w Fiber Laser Marking Machine For Diamond Tools 2

Specifications:

Technology Parameters
Laser Source Fiber (German original laser)
Control Method Software
Laser Power 30W
Wave Length 1064
Laser Mode TM01
Beam Full Divergence 1.5-2.0rad
Focus Adjusting Range 0-30mm
Engraving Area 26*26mm
Table Travel 100*100*30mm
Positional Accuracy ≤0.03mm
Location Mode CCD Coaxial
Motion Control 3 axis + optical 2 axis
Max Processing Depth ≤1mm
Cooling Method Air Cooling
Consumable No





Applications:

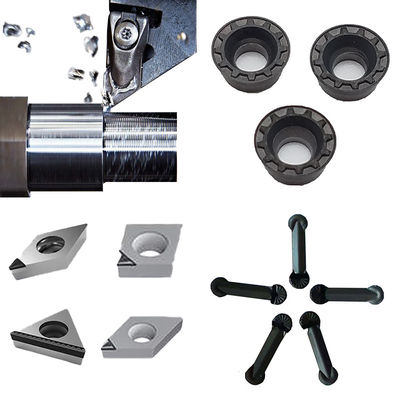

This machine is applicable to ultra-hard tools, PCD ,PCBN, Solid CBN.

Tags:

PCD fiber laser Engraving Machine

PCBN fiber laser engraver for metal

PCBN Fiber Laser Engraving Machine
